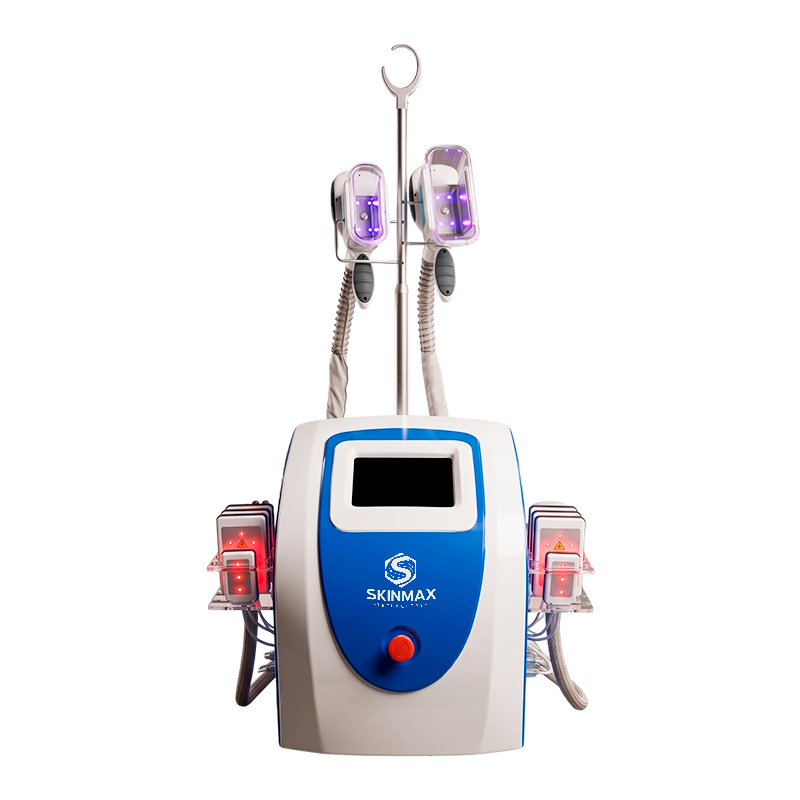

Multi-Technology Body Contouring Machine with Cryolipolysis, Cavitation, RF, and Lipo Laser

Overview of Included Technologies

Cryolipolysis System (2 Handles)

The cryolipolysis function uses controlled cooling to target subcutaneous fat tissue. The system includes two applicators of different sizes, which can operate simultaneously or independently.

• Large Handle Size: 9.5 × 18 cm
• Small Handle Size: 6.5 × 15 cm
• Cooling Temperature Range: -10°C to 10°C
• Vacuum Range: 0–100 kPa

The applicators use vacuum suction to position the treatment area within the cooling plates, enabling consistent contact during operation.

40KHz Cavitation System (1 Handle)

The cavitation handpiece operates using low-frequency ultrasound technology at 40KHz. It delivers acoustic waves into the targeted area, producing mechanical vibration within the tissue.

• Frequency: 40KHz
• Energy Range: 1–10 J/cm²

This system is designed for use in areas typically associated with localized fat deposits.

Radio Frequency (RF) System (1 Handle)

The RF module emits high-frequency electromagnetic waves that penetrate the skin layers, generating thermal energy within the dermis and subcutaneous tissue.

• Frequency: 5 MHz
• Energy Range: 1–10 J/cm²

The RF handpiece is used in treatments focused on skin-related applications involving controlled heat delivery.

Lipo Laser System (6 Pads)

The lipo laser system uses low-level laser technology delivered through multiple pads. The device includes both large and small applicators with integrated diode lasers.

• Wavelength: 635–650 nm
• Each Diode Output: 100 mW
• Pads Included: 4 large pads and 2 small pads
• Diode Configuration:
  • Large pads: 9 diodes each
  • Small pads: 3 diodes each
• Total Diodes: 42

The pads are designed to be placed directly on the treatment area for even light distribution.

Device Specifications

• Display: 8-inch color touch screen
• User Interface: Touchscreen control system
• Total Handles and Applicators:
  • 2 cryolipolysis handles
  • 1 cavitation handle
  • 1 RF handle
  • 6 lipo laser pads

Functional Design and Operation

The device is designed to support multiple treatment modalities within a single platform. Each technology operates through its dedicated handpiece or applicator, allowing the practitioner to select and configure parameters according to the intended application.

The dual cryolipolysis handles can function simultaneously or separately, enabling flexible workflow options. The touchscreen interface provides centralized control of all system parameters, including temperature, energy levels, and treatment duration.

Typical Applications

This multi-technology system is commonly used in aesthetic settings for procedures involving:

• Localized body contouring
• Skin-focused treatments using RF technology
• Ultrasound-based applications with cavitation
• Low-level laser applications with pad-based systems

Package Contents

• Main device unit with 8-inch touch screen
• 2 cryolipolysis handles (large and small sizes)
• 1 cavitation handpiece (40KHz)
• 1 RF handpiece (5 MHz)
• 6 lipo laser pads (4 large, 2 small)
