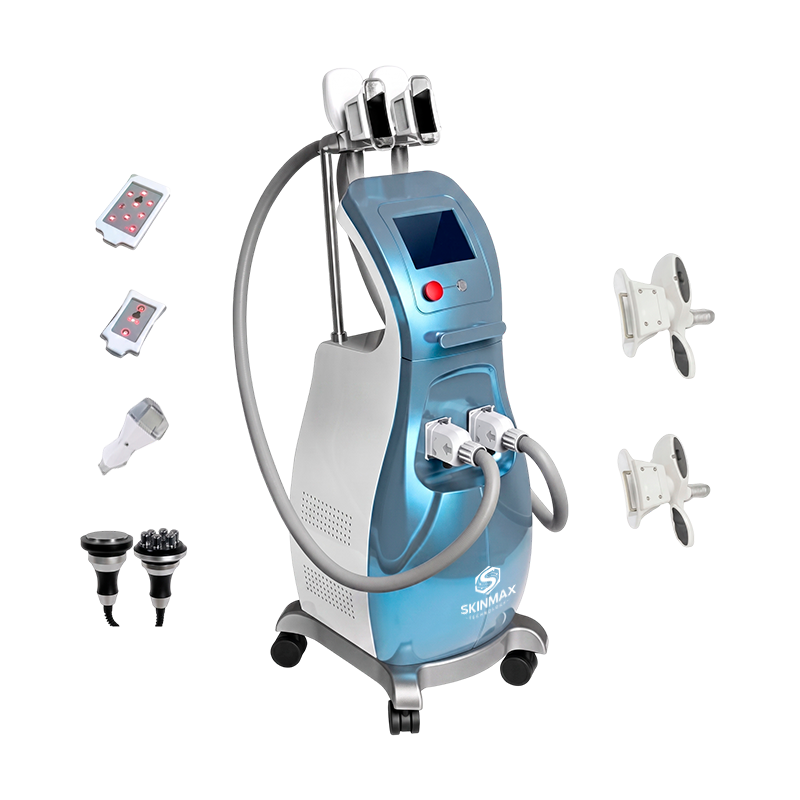

Multi-Technology Body Contouring Machine

Cryolipolysis + 40K Cavitation + Multipolar RF + 635nm Lipo Laser System

Product Overview

This multi-function body contouring machine integrates several aesthetic technologies, including cryolipolysis, 40K cavitation, multipolar radio frequency (RF), and 635nm diode lipo laser. It is designed for professional use in aesthetic centers and clinics, providing a combination of non-invasive treatment modalities for body contouring and skin-focused applications.

Integrated Technologies

40K Ultrasonic Cavitation

The system includes a 40KHz cavitation handpiece that emits low-frequency ultrasonic waves. These sound waves interact with subcutaneous fat tissue, generating mechanical vibrations that act on fat cells. The process involves repeated compression and expansion within the tissue, which influences the structure of fat cells and their internal content.

Multipolar Radio Frequency (5MHz)

The multipolar RF system operates at a frequency of 5MHz, delivering high-frequency electromagnetic waves into the dermal and subdermal layers.
This technology is designed to:

• Generate controlled heat within the skin layers
• Interact with collagen structures
• Stimulate fibroblast activity and collagen formation processes

The RF energy primarily targets deeper skin layers, supporting applications related to skin texture and firmness.

635nm Diode Lipo Laser (LLLT)

The device incorporates Low-Level Laser Therapy (LLLT) using 635nm diode laser pads. This technology emits low-intensity laser energy that penetrates the skin surface and interacts with adipose tissue.
The mechanism involves:

• Affecting fat cell membrane permeability
• Facilitating the release of intracellular lipids
• Allowing fatty components to move into surrounding interstitial spaces

The system includes multiple laser pads to cover different treatment areas.

Cryolipolysis System

The machine is equipped with three cryolipolysis applicators (large, medium, and mini), designed to deliver controlled cooling to targeted areas.
Cryolipolysis technology works by:

• Applying precise low temperatures to subcutaneous fat
• Acting on fat tissue without direct impact on surrounding structures
• Supporting gradual metabolic processing of affected fat cells

The cooling system uses water as the circulating medium and can reach temperatures as low as -10°C.

Applications

This device is intended for a range of aesthetic and cosmetic procedures, including:

• Body contouring and fat reduction treatments
• Skin tightening and texture-related applications
• Appearance-focused treatments for wrinkles and fine lines
• Cellulite-related procedures
• General skin rejuvenation protocols
• Treatments targeting areas such as abdomen, thighs, arms, and back

Technical Specifications

• Voltage: 110V / 220V
• Power Consumption: 300W
• Display: 8-inch TFT color touch screen
• Cooling Temperature: Down to -10°C
• Cooling Medium: Pure water
• Working Time: 0–60 minutes adjustable
• Vacuum Pressure: 0–900 KPa
• Relative Humidity: < 80%
• Fuse: F2AL250V

System Configuration

• Cryolipolysis Handles: 3 pcs (large, medium, mini)
• Cavitation Frequency: 40KHz
• Cavitation Power: 5 W/cm²
• RF Frequency: 5MHz
• Lipo Laser Pads: 6 pcs (4 large, 2 small)

Packaging Information

• Packing Size: 131 × 61 × 62 cm (wooden case)
• Gross Weight: 65 kg
