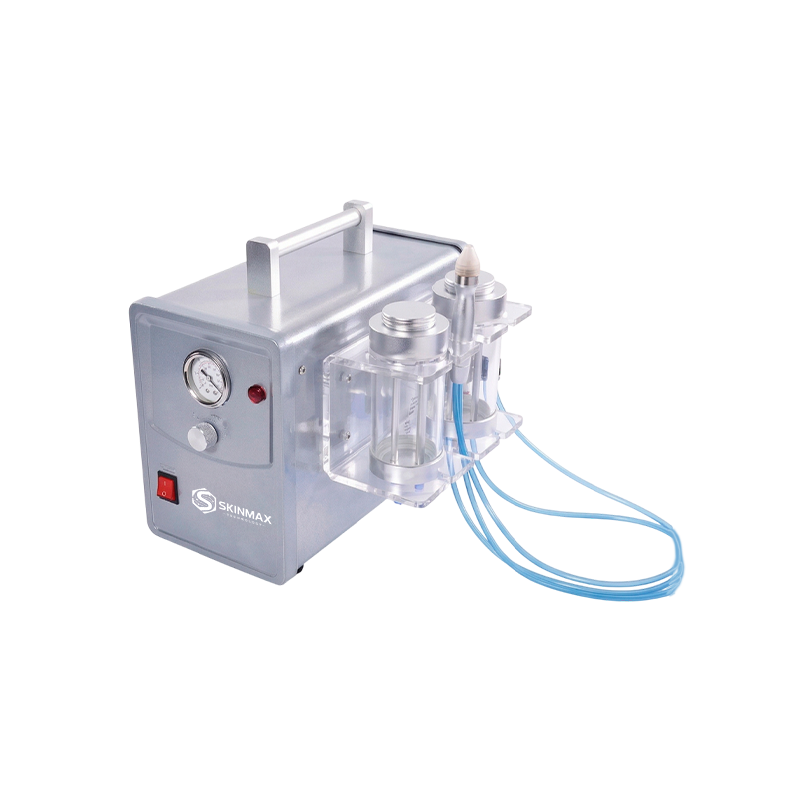

Micro-crystal Dermabrasion Machine

Crystal & Diamond Microdermabrasion System – Professional Skin Exfoliation Device

Overview

The Crystal & Diamond Microdermabrasion System is an advanced evolution of traditional micro-crystal dermabrasion technology. It is designed to perform a non-surgical skin resurfacing procedure by combining crystal-based exfoliation with diamond tip abrasion.

The system uses sterile diamond heads or fine micro-crystals to gently exfoliate the outermost layer of the skin. Simultaneously, a vacuum mechanism removes exfoliated particles, impurities, and dead skin cells from the surface.

This process is intended for the removal of surface debris, skin irregularities, blemishes, fine lines, and uneven pigmentation. The equipment also incorporates a vacuum recovery function to collect residual crystals remaining on the skin after treatment.

Description

This microdermabrasion unit operates through a controlled exfoliation method using sterile micro-crystals. The crystals are applied to abrade the outer skin layer, while an integrated vacuum system extracts particles, dirt, and dead cells.

The device includes a specialized feature that allows the recovery of remaining crystals from the skin surface, supporting a clean and controlled procedure environment.

The treatment process can be combined with topical skincare products applied after exfoliation, allowing interaction with the upper skin layers.

Key Characteristics

• Non-surgical skin resurfacing system
• Dual technology: crystal microdermabrasion and diamond dermabrasion
• Vacuum-assisted exfoliation and particle removal
• Crystal recovery function integrated into the system
• Powder-based and diamond-tip exfoliation options
• Designed for professional use only

Functional Applications

Micro-Crystal Peeling Function

This function is based on mechanical exfoliation principles using fine crystals. It is a dry exfoliation method suitable for multiple areas of the body, including the face.

The process involves the removal of dead skin cells from the outer layer using controlled abrasion, followed by vacuum extraction. It is commonly used in procedures involving surface-level skin cleansing and exfoliation.

Diamond Dermabrasion Function

The diamond dermabrasion function uses sterile diamond tips to perform controlled abrasion of the skin’s outer layer. The vacuum system simultaneously removes exfoliated particles and impurities.

This function is designed for procedures involving surface refinement of the skin through mechanical exfoliation.

Usage Scope

The device is commonly used in professional aesthetic procedures for areas such as:

• Face
• Neck
• Shoulders
• Back
• Arms
• Legs

Applications may include procedures involving:

• Surface exfoliation
• Skin texture refinement
• Pore cleansing
• Removal of surface impurities
• Extraction of blackheads and whiteheads

Safety Notice

Due to the nature of the procedure, this equipment must be operated exclusively by trained and qualified personnel. Improper use may result in damage to the equipment or adverse effects on the client. Any misuse may void the manufacturer’s warranty.

Technical Specifications

• Crystal Powder: 120#
• Germany Becker Pump: Type V.T 4.4
  • Inlet Capacity: 4.1 / 4.7
  • Maximum Vacuum: 150 / 150 mbar
• Taiwan Pump: Type DV-3V
  • End Pressure: -680 mmHg
  • Maximum Capacity:
    • 3.3 m³/h (60Hz)
    • 3.0 m³/h (50Hz)
• Dimensions: 44 × 32 × 43 cm
• Gross Weight: 22 kg
• Voltage: 100–120V / 220–240V
• Power Consumption: 300W
