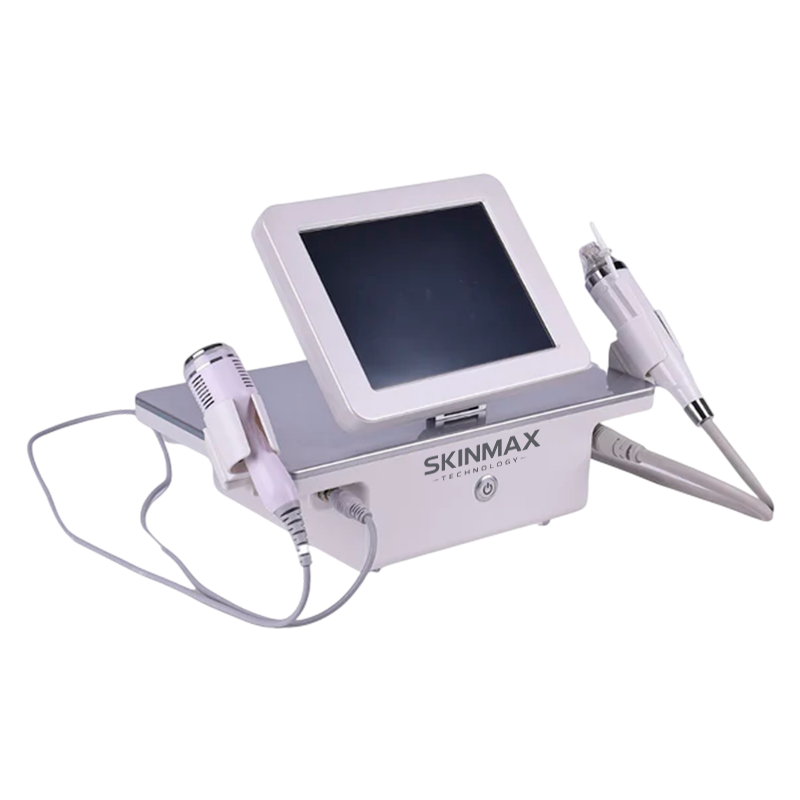

Fractional Radiofrequency Microneedling Machine

Professional Fractional RF Microneedling Equipment for Aesthetic Treatments

The Fractional Radiofrequency Microneedling Machine is an advanced aesthetic device designed for facial and body treatments that combine microneedling technology with radiofrequency (RF) energy. This equipment is commonly used in aesthetic clinics, beauty centers, and professional skincare environments for procedures focused on skin texture, firmness, and overall skin appearance.

The system integrates adjustable microneedles and controlled RF energy delivery to work on different skin depths, allowing professionals to customize treatments according to specific application areas and skin conditions.

Main Functions and Applications

This RF microneedling system is designed for procedures related to:

• Skin tightening and firming
• Appearance of fine lines and wrinkles
• Acne scar treatments
• Stretch mark treatments
• Enlarged pores
• Skin texture improvement
• Facial rejuvenation procedures

The device uses insulated microneedles to deliver radiofrequency energy into deeper skin layers. According to the equipment specifications, the controlled penetration depth and RF emission are intended to support collagen and elastin stimulation processes during aesthetic treatments.

Integrated Technologies

Fractional Radiofrequency Technology

The equipment operates with RF frequencies ranging from 2MHz to 4MHz and adjustable RF power from 10W to 200W. The fractional radiofrequency system is designed to deliver thermal energy into targeted skin layers through microneedle cartridges.

Microneedling System

The device includes multiple needle cartridge options for different treatment areas and applications:

• 10-pin needle cartridge
• 25-pin needle cartridge
• 64-pin needle cartridge
• Nano cartridge

The needle thickness is 0.3 mm, with adjustable penetration depth from 0.2 mm to 3.5 mm.

Adjustable Treatment Settings

The machine offers customizable treatment parameters, including:

• Needle depth adjustment: 0.2 – 3.5 mm
• RF power adjustment: 10 – 200W
• Treatment duration: 0.1 – 0.6 seconds
• Suction levels: 2 adjustable levels
• Cooling system: 1–5° cooling range

These settings allow practitioners to adapt procedures according to the treatment area and selected protocol.

Cold Hammer Function

The equipment includes a cold hammer handpiece designed for post-treatment skin cooling applications. This feature is commonly used after aesthetic procedures to provide a cooling sensation on the skin surface.

According to the provided information, the cooling function is associated with skin soothing applications and temporary reduction of skin redness after treatment sessions.

User Interface and Design

The machine features a 12-inch color touchscreen control panel that allows easy parameter adjustment and treatment monitoring during operation.

Its professional interface is designed to simplify control of:

• RF power levels
• Needle depth settings
• Treatment timing
• Cooling adjustments
• Suction configuration

Technical Specifications

RF System

• RF Frequency: 2MHz – 4MHz
• RF Power: 10W – 200W

Microneedling Parameters

• Needle Depth: 0.2 – 3.5 mm
• Needle Thickness: 0.3 mm
• Treatment Duration: 0.1 – 0.6 seconds

Additional Features

• Suction Levels: 2 levels
• Cooling Range: 1–5°
• Display: 12-inch color touchscreen

Included Needle Cartridges

• 10-pin cartridge
• 25-pin cartridge
• 64-pin cartridge
• Nano cartridge
