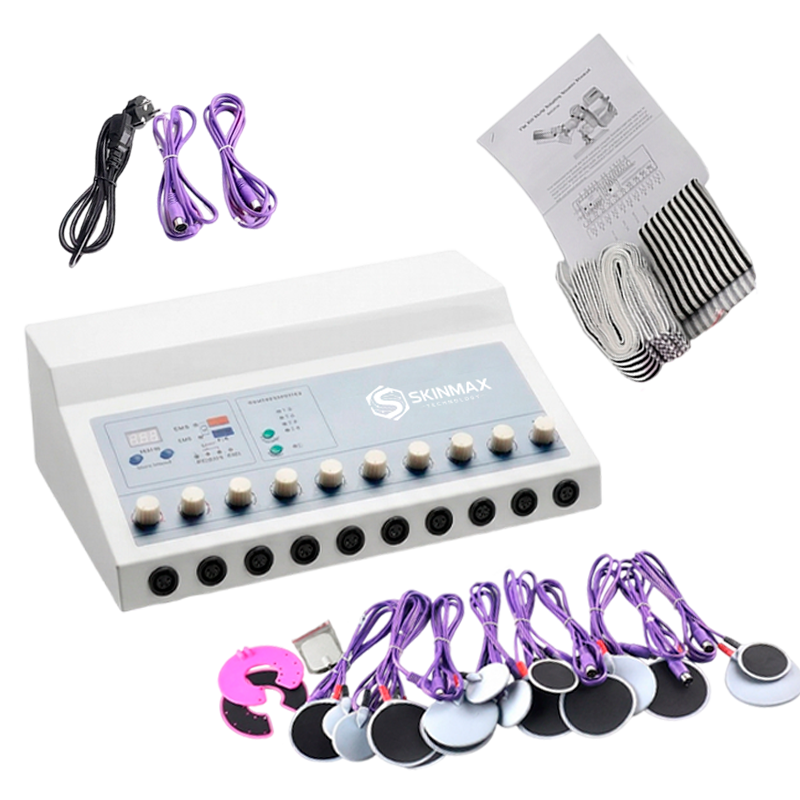

Electrical Muscle Stimulation Machine with 20 Pads

Professional Body Toning and Muscle Stimulation Equipment

Product Overview

The electrical muscle stimulation (EMS) machine is a body treatment device designed to deliver low-frequency electrical impulses through multiple electrode pads. These impulses generate controlled muscle contractions, simulating passive exercise activity across different areas of the body.

This system is commonly used in aesthetic and physiotherapy environments for muscle stimulation, body toning, and circulation support, utilizing faradic current technology and programmable waveform settings.

Key Functions

• Body Slimming Support
  Delivers electrical impulses that stimulate muscle contractions across targeted areas.
• Muscle Stimulation and Toning
  Activates both large and micro muscle groups that support the dermal structure.
• Faradic Body and Breast Stimulation
  Computer-controlled faradic currents designed for body and chest area applications (non-invasive).
• Localized Treatment Areas
  Suitable for thighs, ankles, knees, abdomen, buttocks, hips, arms, and upper back.
• Circulation and Metabolic Support
  Electrical stimulation may assist in promoting blood flow and metabolic activity.

Technical Features

• 20 Electrode Pads Configuration
  Includes 10 groups of electrodes plus 1 pair of specialized bra electrodes.
• Multiple Waveform Modes
  8 independent low-frequency waveform types designed to simulate different muscle contraction patterns.
• Stable Circuit System
  Allows all electrode pads to operate simultaneously with controlled and adjustable energy output.
• Adjustable Timing Controls
  • Pulse Width: 100 μs – 500 μs
  • Contraction Time: 0.1 s – 5.0 s
  • Relaxation Time: 0.1 s – 5.0 s
• Targeted Body Application
  Designed for multi-area use with adaptable electrode placement.

Technical Specifications

• Voltage: AC 110V / 220V
• Frequency: 50–60 Hz
• Power: 40 W
• Package Size: 47 × 40 × 20 cm
• Gross Weight: 5.2 kg

Package Contents

• Main EMS machine unit
• 20 electrode pads (10 groups)
• 1 pair of bra electrodes
• Connection cables

Usage Information

The device operates by placing electrode pads on selected body areas. Once activated, it delivers controlled electrical impulses that produce rhythmic muscle contractions. The intensity, waveform, and timing parameters can be adjusted depending on the treatment protocol.

Safety Precautions

• Do not place electrodes on injured, irritated, or infected skin.
• Avoid use on recent surgical scars (within 10 months).
• Do not apply on the abdominal area within 1 hour after eating.
• Not suitable for individuals with heart conditions.
• Do not use on individuals with severe internal organ conditions.
• Contraindicated for people with epilepsy or alcohol dependency.
• Do not use during pregnancy.

Application Scope

This EMS machine is suitable for aesthetic clinics, wellness centers, and professional body treatment environments that require equipment for muscle stimulation and body contouring support.
