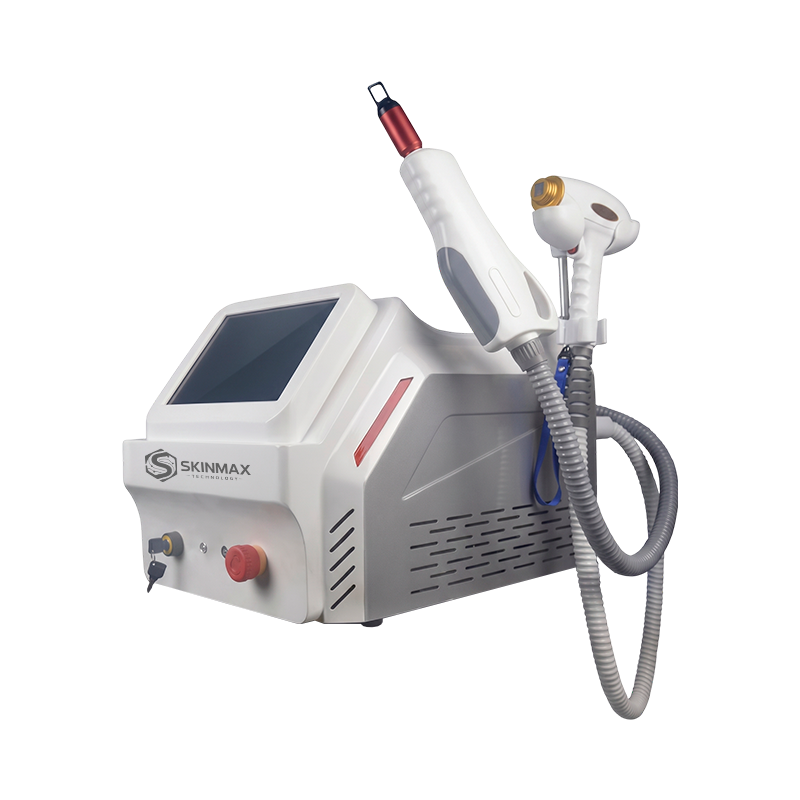

Diode Laser Hair Removal Machine 755nm + 808nm + 1064nm

Professional Diode Laser System for Multi-Wavelength Hair Removal Treatments

The Diode Laser Hair Removal Machine is an advanced aesthetic device designed for professional hair removal treatments using combined semiconductor laser technology. This system integrates three laser wavelengths — 755nm, 808nm, and 1064nm — to support treatments across different skin types and hair characteristics.

The device uses high-energy diode laser technology to deliver controlled light energy into the hair follicle area. The emitted laser energy is absorbed by pigment in the hair shaft and follicle, where it converts into heat. This process targets the follicle structure while maintaining protection of the surrounding skin surface through integrated cooling technologies.

Its multi-wavelength configuration, adjustable parameters, and continuous cooling system make this equipment suitable for clinics, beauty centers, and professional aesthetic practices seeking versatile laser hair removal technology.

Multi-Wavelength Diode Laser Technology

755nm Diode Laser

The 755nm wavelength is commonly used for treatments involving finer or lighter hair types and lighter skin tones. This wavelength is characterized by strong melanin absorption and is frequently selected for detailed treatment areas.

808nm Diode Laser

The 808nm wavelength is designed as the primary standard wavelength for general diode laser hair removal applications. It is suitable for a wide range of skin tones and hair types.

1064nm Diode Laser

The 1064nm wavelength provides deeper penetration into the skin and is commonly utilized for darker skin tones. This wavelength configuration is designed to support treatments with enhanced safety considerations for higher melanin levels.

Main Features

• Triple wavelength system: 755nm + 808nm + 1064nm
• Semiconductor diode laser technology
• Adjustable pulse width and power density
• Treatment spot size: 12 × 12 mm
• Integrated cooling technologies
• Sapphire contact cooling system
• Air cooling and water cooling combination
• Semiconductor cooling support
• Continuous operation design
• Multi-language interface with 8 language options
• Parameter presets for different skin types
• Modern interface and stable output system
• Designed for professional aesthetic applications

Technical Specifications

Laser Parameters

• Laser Type: Semiconductor Diode Laser
• Laser Power: 800W
• Laser Wavelengths: 755nm / 808nm / 1064nm
• Treatment Spot Size: 12 × 12 mm
• Pulse Width: 10–400 ms (continuously adjustable)
• Power Density: 1–140 J/cm² (continuously adjustable)
• Pulse Frequency: 1–20 Hz

Cooling System

The machine incorporates multiple cooling technologies designed to maintain treatment head temperature and support continuous operation:

• Sealed internal water cooling system
• Air cooling
• Sapphire contact cooling
• Semiconductor cooling

Treatment Head Temperature: -4℃ to 4℃

System Operation

The equipment uses a microprocessor-controlled laser system to regulate laser power and maintain stable energy output. The diode module converts electrical energy into laser light energy at the selected wavelength.

The laser energy is transmitted through the treatment crystal into the skin tissue, where it interacts with pigment in the hair follicle area. Treatment parameters such as energy density and pulse duration can be adjusted according to operational requirements and treatment conditions.

Working Environment

Operating Conditions

• Ambient Temperature: 5℃ to 40℃
• Relative Humidity: ≤80%
• Atmospheric Pressure: 860hPa–1060hPa
• Power Supply: 220V/110V, 50Hz/60Hz

Storage and Transportation Conditions

• Temperature Range: -20℃ to 60℃
• Relative Humidity: ≤100%
• Atmospheric Pressure: 500hPa–1060hPa

Equipment Applications

This diode laser system is intended for professional hair removal procedures in aesthetic and cosmetic environments. The combination of 755nm, 808nm, and 1064nm wavelengths allows practitioners to configure treatments for different skin tones and hair types.

The adjustable settings and cooling technologies are designed to support treatment customization and operational stability during extended use.

Included Technologies

• Triple wavelength diode laser system
• Semiconductor laser module
• Sapphire contact cooling
• Internal water circulation cooling
• Adjustable pulse and energy controls
• Digital parameter management
• Multi-language operating system
• Continuous cooling operation system

Machine Design and Performance Features

• Stable laser energy output
• High-frequency treatment capability
• Continuous adjustment controls
• Large-area treatment support
• Professional-grade cooling system
• Designed for prolonged operational sessions
• Compact and modern equipment structure
• User-configurable treatment parameters
