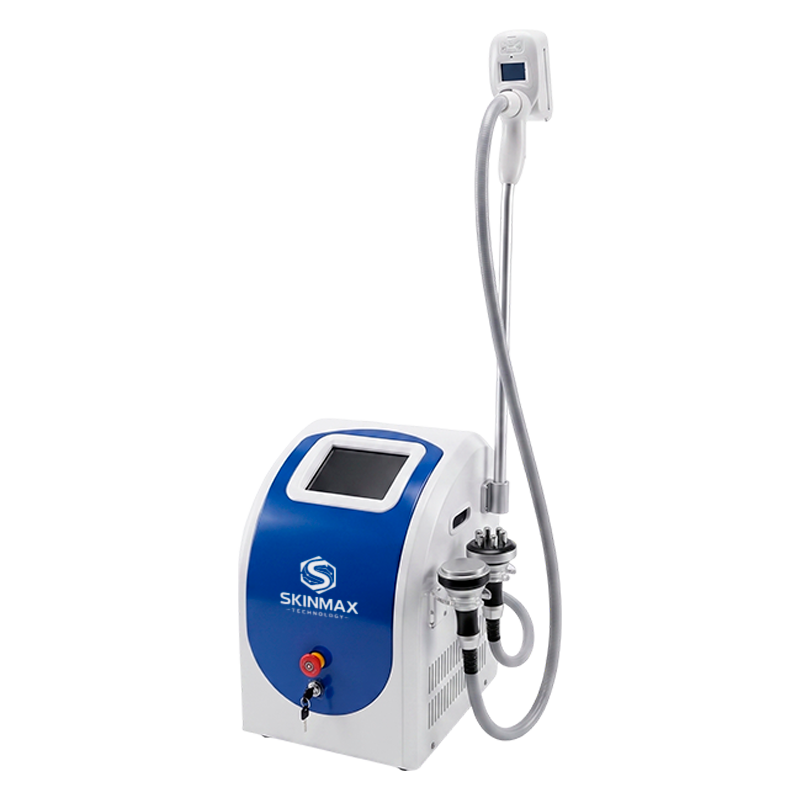

Cryotherapy, Cavitation & RF Body Contouring Machine

Overview

This body contouring system integrates three technologies—cryotherapy (cryolipolysis), ultrasonic cavitation, and radio frequency (RF)—within a single platform. It is designed for aesthetic applications that involve the treatment of localized fat areas and skin-related procedures using non-invasive methods.

Integrated Technologies

Cryotherapy (Cryolipolysis)

Cryotherapy uses controlled cooling technology to target subcutaneous fat cells. At low temperatures, triglycerides within fat cells solidify, initiating a natural metabolic process. Over time, the body processes and eliminates these affected cells through its normal metabolic pathways.

• Selective cooling applied to localized areas
• Designed to act on fat cells without affecting surrounding tissues
• Operates within a controlled temperature range

Ultrasonic Cavitation

Cavitation technology utilizes low-frequency ultrasound waves to interact with the fatty layer beneath the skin. These waves generate microscopic bubbles that act on fat cells through vibration and pressure changes.

• 40 kHz ultrasonic frequency
• Targets subcutaneous fat layers
• Mechanical action on adipose tissue using sound wave energy

Radio Frequency (RF)

Radio frequency employs high-frequency electromagnetic waves to deliver thermal energy into the dermis and subcutaneous tissue. This process heats deeper skin layers through controlled energy transmission.

• Frequency: 5 MHz
• Designed for deep tissue heating
• Applicable to skin-focused aesthetic procedures

Technical Specifications

• Voltage: AC 110V / 220V, 50–60 Hz
• Power Consumption: < 400 W
• Pressure Output: 0–106 KPa
• Display: 8.4-inch touch screen
• Cryolipolysis Temperature Range: -10°C to 0°C
• Cavitation Frequency: 40 kHz
• RF Frequency (Body): 5 MHz
• Net Weight: 24 kg
• Gross Weight: 30 kg

Applications

This device is commonly used in aesthetic and cosmetic settings for procedures involving:

• Body contouring treatments
• Localized fat-area procedures
• Skin-focused thermal treatments
• Multi-technology non-invasive sessions

Package and Operation

The equipment includes a main unit with an integrated touch screen interface for parameter adjustment and treatment control. It is compatible with multiple applicators corresponding to each technology (cryotherapy, cavitation, and RF), allowing operators to perform different types of procedures using a single system.

Additional Notes

• Designed for professional use in aesthetic environments
• Requires proper training for operation
• Parameters should be adjusted according to the selected treatment and application area
