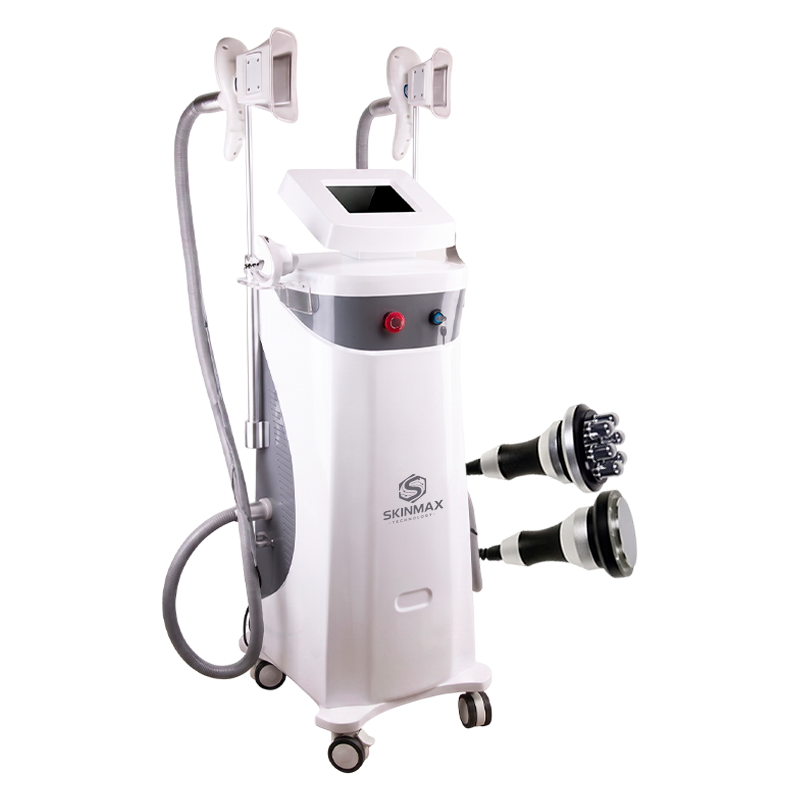

Cryolipolysis, Cavitation & RF Body Contouring Machine

Overview

This multifunctional aesthetic device integrates cryolipolysis, 40K cavitation, and 5MHz multipolar radio frequency (RF) technologies in a single system. It is designed for professional use in body contouring procedures, combining controlled cooling, ultrasonic energy, and radiofrequency to work on different layers of the skin and subcutaneous tissue.

Integrated Technologies

Cryolipolysis System (Dual Handles)

The equipment includes two cryolipolysis handles designed for different treatment areas:

• Large handle size: 18 × 6 cm
• Small handle size: 15 × 5 cm

Cryolipolysis operates using controlled cooling technology. At low temperatures, triglycerides within fat cells transition into a solid state. The applicators deliver precise cooling to targeted areas, exposing adipose tissue to specific temperatures. This process initiates a gradual breakdown and natural elimination of fat cells through the body’s metabolic pathways, without affecting surrounding tissues.

40K Ultrasonic Cavitation

The cavitation function uses low-frequency ultrasonic waves (35–40 kHz):

• Generates mechanical vibration within fatty tissue
• Produces oscillation and friction between fat cells
• Designed to act on localized fat and cellulite areas

The cavitation handle emits high-frequency sound waves that interact with subcutaneous fat layers, supporting procedures focused on body contouring applications.

5MHz Multipolar Radio Frequency (RF)

The RF system uses high-frequency electromagnetic waves (5 MHz):

• Penetrates dermal and subdermal layers
• Generates heat through tissue resistance (impedance)
• Transfers thermal energy into deeper skin structures

This controlled heating process acts on the dermis and underlying tissues, where collagen fibers respond to temperature changes. The system is commonly used in treatments focused on skin tightening and tissue remodeling procedures.

Technical Specifications

• Display: 8-inch TFT color touch screen
• Voltage: 110V / 220V (depending on machine configuration)
• Power Consumption: ≤ 500W
• Cooling Medium: Pure water
• Vacuum Pressure: 0–106 KPa
• Maximum Vacuum: 650 mmHg
• Pump Flow Rate: 60 L/min
• Cooling Temperature Range: -2°C to -20°C
• Cavitation Frequency: 35–40 KHz
• RF Frequency: 5 MHz
• Packing Dimensions: 131 × 60 × 60 cm
• Operating Temperature: 5°C to 40°C
• Relative Humidity: ≤ 80%

Included Accessories

• Power supply cable ×1
• Handle support ×1
• User manual ×1
• Cryolipolysis handles ×2
• Cavitation handle ×1
• RF handle ×1
• Replacement fuses ×2
• Emergency switch ×1

Applications

This device is typically used in aesthetic and cosmetic settings for procedures involving:

• Localized body contouring
• Fat reduction treatments
• Skin tightening protocols
• Multi-technology body treatments combining cooling, ultrasound, and radiofrequency

Key Features

• Combination of three technologies in one platform
• Dual cryolipolysis handles for different treatment areas
• Adjustable cooling and vacuum parameters
• Integrated cavitation and RF systems
• Touchscreen interface for parameter control
