Co2 Fractional Laser Machine II

Overview

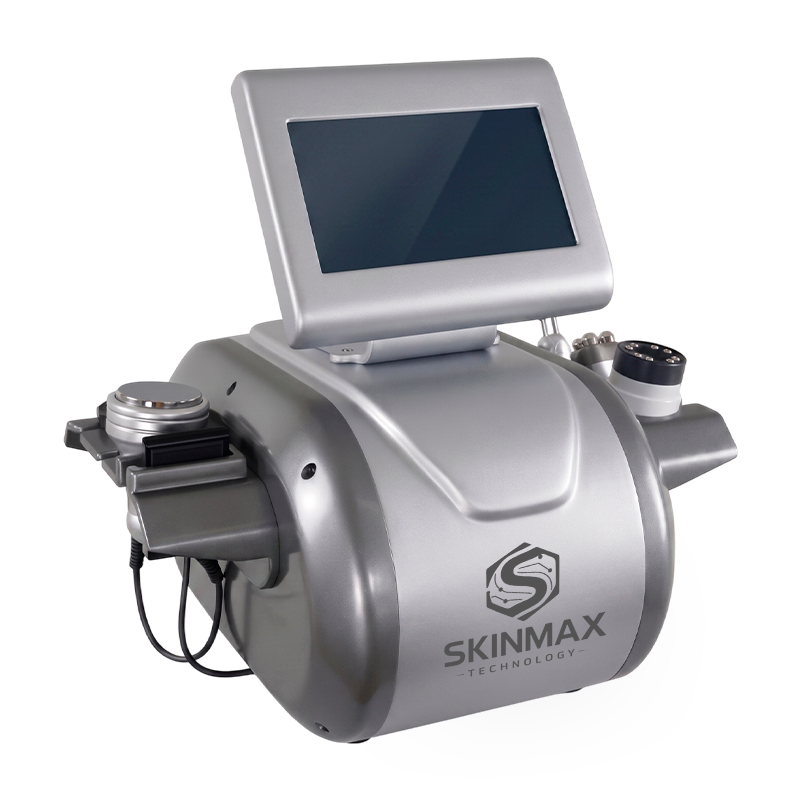

The vacuum cavitation machine is an aesthetic device designed to perform non-invasive body contouring treatments through a combination of ultrasonic cavitation and radiofrequency (RF) technologies. It integrates multiple functional handles and control systems to support procedures focused on body shaping, skin tightening, and tissue stimulation.

Applications

This equipment is commonly used in aesthetic and cosmetic treatments aimed at:

• Supporting tissue metabolism processes
• Assisting in cellulite-related treatments
• Skin tightening procedures
• Improving skin elasticity
• Fat reduction applications
• General body contouring treatments

Functional Description

The system operates with a multi-technology approach to deliver different types of treatments across various body areas. It includes ultrasonic cavitation for fat cell disruption and radiofrequency handles for targeted skin applications.

The device is equipped with a control interface that allows operators to adjust parameters according to the treatment area. It also incorporates a footswitch for operational control and multiple accessories required for setup and maintenance.

Working Principle

Ultrasonic Cavitation Technology

The machine emits low-frequency ultrasonic waves (40 kHz) that interact with liquid components in biological tissues. These waves generate cycles of compression and expansion, creating microscopic cavities or bubbles within the fluid.

This physical phenomenon, known as cavitation, produces pressure variations that can affect low-density adipose (fat) cells. The mechanical action leads to increased molecular movement within the targeted area.

Radiofrequency (RF) Technology

The system also includes RF outputs (5 MHz) delivered through different applicators:

• 2-polar RF handle: Designed for smaller or localized areas such as around the eyes
• 3-polar RF handle: Intended for facial applications

RF energy interacts with skin layers to support treatments focused on skin tightening and elasticity.

Technical Specifications

• Input Voltage: AC 110V / 220V, 50–60 Hz
• Output Power: < 500 W
• RF Frequency: 5 MHz
• Ultrasonic Frequency: 40 kHz
• Display: 10.4-inch color touch screen
• Machine Size: 51.5 × 51.5 × 50 cm
• Packing Size: 62 × 52 × 76 cm

Included Components

• Ultrasonic cavitation handle (body applications)
• 2-polar RF handle (eye treatments)
• 3-polar RF handle (facial treatments)
• Footswitch (power control)
• Power cable
• Hexagonal screws
• Hexagonal screwdriver

Key Features

• Multi-technology system combining ultrasonic cavitation and RF
• Integrated touch screen interface for parameter control
• Multi-handle configuration for different treatment areas
• Bio-electrical wave analysis system (8 points, 5–50 Hz range)
• Vacuum and pressure adjustment technology for controlled operation
• Designed for full-body aesthetic treatment applications
• Non-invasive operational approach
