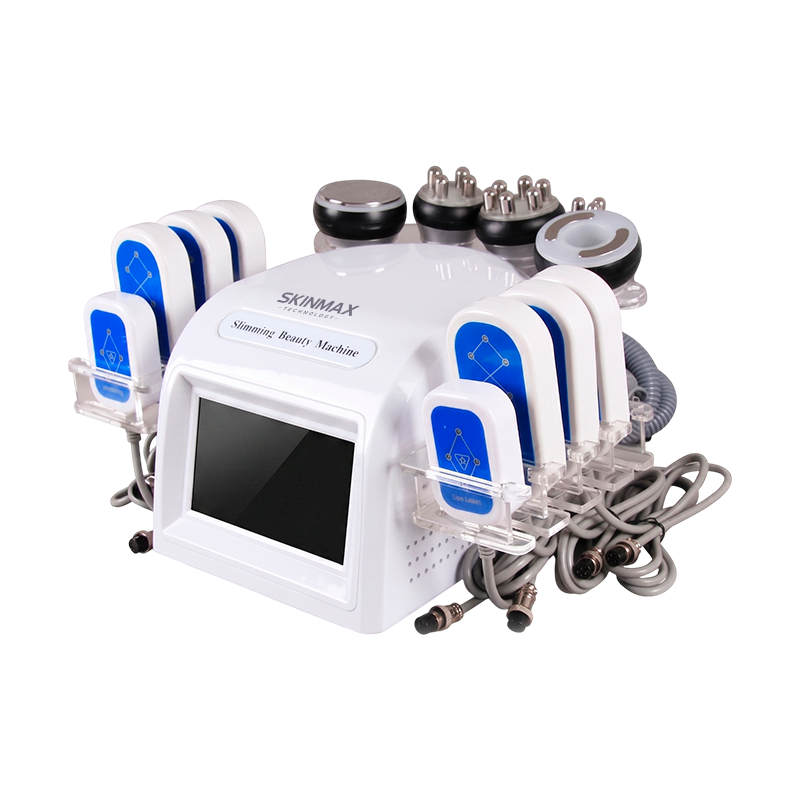

Cavitation RF Laser Machine

Overview

The 40K Cavitation RF Body Slimming Machine is a multi-technology aesthetic device designed for body contouring and skin treatment applications. It integrates ultrasonic cavitation, radiofrequency (RF), vacuum technology, diode laser, and LED photon therapy into a single platform for professional use in aesthetic clinics and beauty centers.

Integrated Technologies

1. 40K Ultrasonic Cavitation

This system uses a 40 kHz ultrasonic frequency to generate high-intensity sound waves. These waves interact with subcutaneous fat layers, producing rapid vibrations and pressure variations within the tissue.

• Frequency: 40 kHz
• Power: 25W
• Output: 150V

The cavitation effect creates microbubbles within the targeted area, influencing the structure of fat cells through mechanical action.

2. Vacuum + Bipolar RF Technology

This applicator combines radiofrequency energy with negative pressure vacuum suction to work on deeper tissue layers.

• RF Frequency: 1 MHz
• Power: 90W
• Output: 66V

The vacuum function enables controlled suction while RF energy generates thermal activity within the tissue. The system includes adjustable suction intensity and incorporates textured rollers for surface contact.

3. Tripolar RF with Red Photon Therapy (Face & Eye Area)

Designed for facial applications, this probe uses tripolar radiofrequency combined with red LED light.

• RF Frequency: 3 MHz
• Power: 30W
• Output: 66V
• LED Wavelength: 650–730 nm

The applicator delivers RF energy through capacitive coupling, generating controlled heating within superficial skin layers.

4. Multipolar RF with Red Photon Therapy (Body)

This technology uses multiple electrodes to distribute RF energy across different tissue depths.

• RF Frequency: 5 MHz
• Power: 50W
• Output: 66V

The system operates with alternating polarity and frequency control to focus energy within targeted areas.

5. LED Photon Therapy

The device includes red light LED therapy within the wavelength range of 650–730 nm, commonly used in aesthetic treatments.

6. Diode Lipo Laser System

The diode laser emits low-level laser energy designed for interaction with subcutaneous tissue.

• Wavelength: 635 nm
• Output per diode: 160 mW
• Total Output: 6080 mW
• Power Consumption: 100VA

The system includes multiple laser pads for body application, allowing simultaneous coverage of larger areas.

Functions and Applications

This multi-functional system is suitable for a range of aesthetic applications, including:

• Body contouring and shaping procedures
• Skin tightening treatments
• Cellulite-focused treatments
• Facial care applications (face and eye area)
• Lymphatic stimulation protocols
• Post-pregnancy abdominal contour procedures
• Treatment of areas such as neck, décolleté, arms, legs, and knees

Technical Specifications

General Parameters

• Input Voltage: 110V / 220V
• Frequency: 50Hz / 60Hz
• Total Power: 150W

Handpieces Summary

• 40K Cavitation Probe
• Vacuum + Bipolar RF Probe
• Tripolar RF (Face) with LED
• Multipolar RF (Body) with LED
• Bipolar RF for Face
• Diode Laser Pads (Large and Small)

Package Contents

• 1 × Main Machine
• 1 × 40K Cavitation Ultrasound Probe
• 1 × Vacuum + Bipolar RF Probe
• 1 × Tripolar RF with Red Photon Therapy Probe
• 1 × Multipolar RF with Red Photon Therapy Probe
• 1 × Bipolar RF Facial Probe
• 4 × Large Diode Laser Pads
• 2 × Small Diode Laser Pads
• 3 × Holders
• 1 × Power Cord
