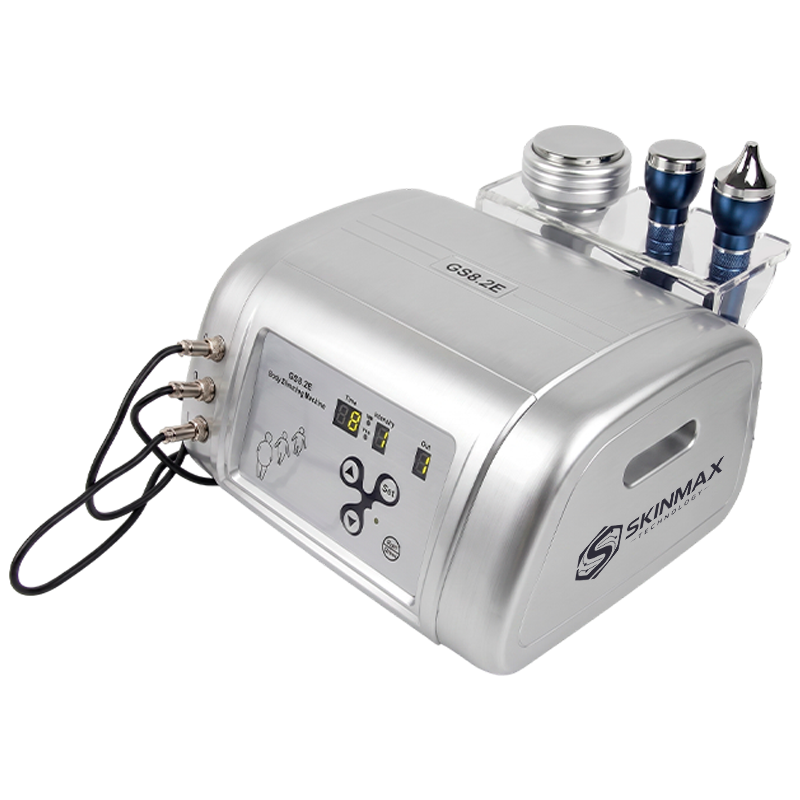

Cavitacion + Ultrasonic 75W 40KHZ Lipo Slimming Machine

Product Overview

The Ultrasonic Cavitation Body Shaping Device is an aesthetic equipment designed for treatments involving ultrasound-based technology applied to areas with localized fat deposits. It operates through controlled ultrasonic waves that interact with biological tissues to generate a physical phenomenon known as cavitation.

This device is commonly used in professional environments such as aesthetic clinics and beauty centers.

Technology and Working Principle

The system uses ultrasonic energy (1MHz / 40KHz) to act on liquids and tissues within the body.

• The ultrasonic waves create cycles of compression and expansion within the treated area.
• These cycles generate microbubbles (cavities) in the intercellular and intracellular liquid.
• The bubbles contain gas and vapor and are influenced by alternating pressure:
  • Positive pressure (compression phase)
  • Negative pressure (expansion phase)

In lower-density tissues such as fat, where molecular bonding is weaker, this process can lead to:

• Formation of micro-gaps in the tissue
• Increased molecular motion at a localized level
• Structural disruption of fat cells

This physical process is referred to as ultrasonic cavitation and implosion effect.

Main Features

• Ultrasonic cavitation-based technology
• Compatible with different skin types
• Non-invasive application (no incisions or needles)
• Touch-controlled operation with adjustable intensity levels
• Designed for ease of use in professional settings
• Multiple treatment heads for different application areas

Technical Specifications

• Voltage: 110V / 220V (50/60Hz)
• Power: ≤ 75W
• Operating Frequency: 1MHz / 40KHz
• Weight: Approx. 10 kg
• Plug Types Available: US, UK, AU, EU

Package Contents

• 1 × Main Unit
• 1 × Power Supply Cable
• 1 × User Manual
• 1 × Large Ultrasound Head
• 1 × Medium Ultrasound Head (with cable)
• 1 × Small Ultrasound Head (with cable)
• 1 × Accessory Shelf
• 3 × Hexagonal Screws
• 1 × Hex Key

Application and Use

• Apply conductive gel to the treatment area (e.g., abdomen, hips, thighs).
• Set treatment time (recommended: 10 minutes per area).
• Adjust intensity level (from 1 to 5).
• Operate using the foot switch to start or pause.
• Move the ultrasound head continuously over the skin using circular or linear motions.

General Guidelines:

• Total session time should not exceed 30 minutes per day.
• Adequate gel must be used to ensure proper conductivity.
• The ultrasound head should not remain stationary during operation.

Operational Considerations

• Do not use directly over bones or sensitive anatomical areas.
• Avoid use on the back with specific applicators (e.g., M80 head).
• Do not operate without sufficient conductive gel.
• Clean the device and applicators after each use.

Contraindications

This device should not be used in the following cases:

• Fever, infectious, or acute diseases
• Cardiovascular conditions or pacemaker use
• Severe hypertension, tumors, or cancer-related conditions
• Deep vein thrombosis, varicose veins, or vascular disorders
• Skin diseases, inflammation, or open wounds
• Pregnancy
• Menstrual period (for abdominal treatments)
• Presence of metal implants in the treatment area
• Immune system disorders
