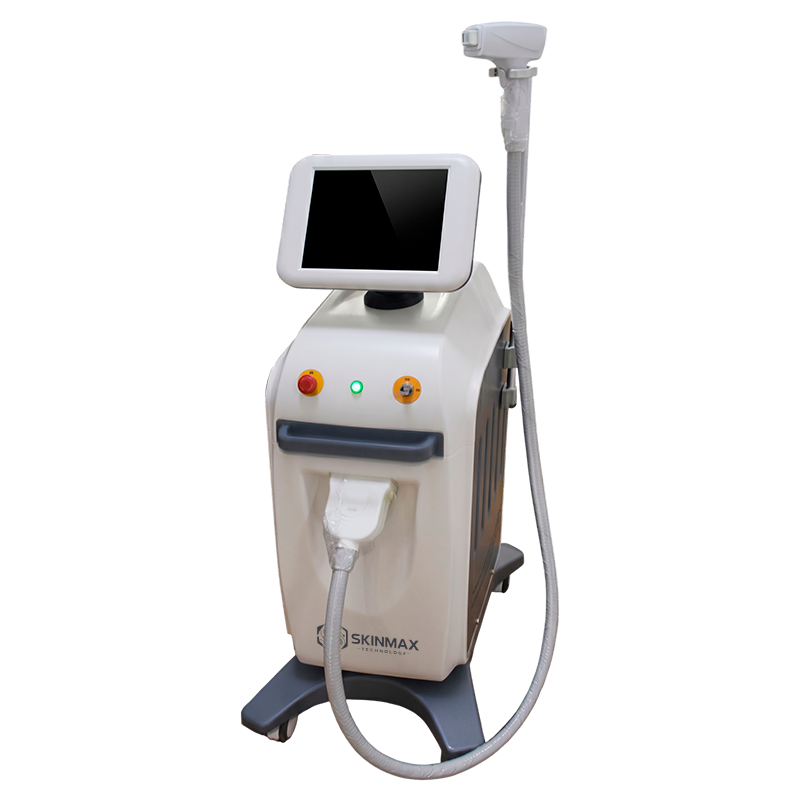

808 nm Diode

Overview

The 808nm diode laser hair removal system is a professional-grade aesthetic device designed for non-invasive hair removal procedures. It operates using a targeted wavelength that interacts with melanin in the hair shaft, allowing controlled thermal energy delivery to the hair follicle.

This system integrates diode laser technology with a cooling mechanism and adjustable parameters, enabling consistent operation across different treatment areas.

How the Technology Works

The device emits laser energy at a wavelength of 808nm, which penetrates the skin and is absorbed by melanin within the hair structure. The absorbed energy is converted into heat, which affects the hair follicle structure during the growth phase.

The system incorporates multiple pulse technology, allowing controlled energy delivery across treatment sessions.

Key Features

Diode Laser Technology (808nm)

• Laser type: Diode laser
• Wavelength: 808nm
• Designed for interaction with melanin in hair follicles

Adjustable Power Configurations

• Handpiece power options: 300W / 450W / 600W / 900W
• Output power: up to 2000W
• Energy fluence range: 1–100 J/cm²
• Pulse width: 40–350 ms
• Frequency: 1–20 Hz

Integrated Cooling System

• Sapphire contact cooling tip
• Temperature range: -5°C to 5°C
• Micro-channel water + air cooling system
• Supports extended operation periods

Treatment Efficiency

• Spot size: 12 × 12 mm
• Designed for fast coverage of treatment areas
• Stable energy output controlled by an integrated CPU system

User Interface

• 10.4-inch TFT touch screen
• Multi-language support (English, Spanish, Russian, Turkish, etc.)
• Interface designed for straightforward parameter adjustment

System Components

• Main diode laser unit
• Laser handpiece with sapphire cooling tip
• Touchscreen control interface
• Internal cooling system (water + air circulation)

Technical Specifications

Physical Specifications

• Packaging: Wooden case
• Packing size: 54 × 64 × 130 cm
• Gross weight: 56 kg

Typical Applications

• Hair removal treatments on various body areas
• Use in aesthetic clinics, dermatology centers, and beauty practices
• Suitable for systems requiring adjustable laser parameters and continuous operation capability
