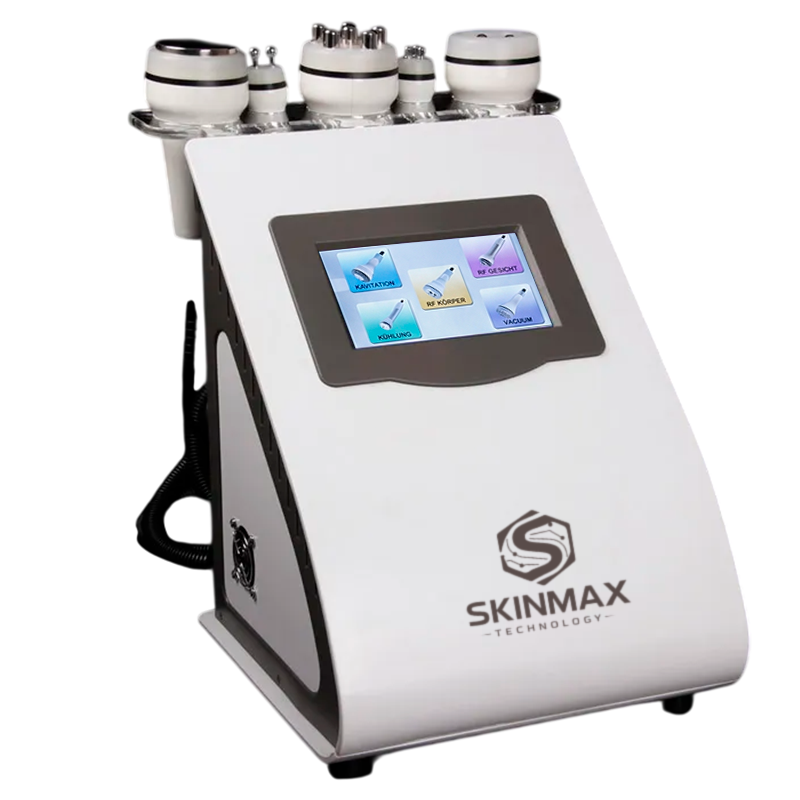

5 in 1 Slimming 40k Machine

Ultrasonic Cavitation, Radio Frequency, Vacuum & Red Photon Technology

Product Overview

This multi-function aesthetic system integrates 40kHz ultrasonic cavitation, radio frequency (RF), vacuum therapy, and red photon technology in a single platform. It is designed for cosmetic applications on both face and body areas, supporting a wide range of aesthetic treatment protocols through different specialized handpieces.

Technical Principle

40K Ultrasonic Cavitation

The system operates using a 40kHz focused ultrasound frequency, generating microscopic air bubbles around adipocytes (fat cells). These bubbles create pressure through oscillation, leading to the disruption of fat cell membranes.

This process involves:

• Formation of microbubbles (cavitation effect)
• Increased permeability of adipocyte membranes
• Release of fatty acids and triglycerides
• Mechanical action that affects surrounding fibrous structures

The released contents are processed by the body through natural metabolic pathways.

Radio Frequency & Red Photon Technology

The device combines radio frequency energy with red photon light to deliver controlled thermal stimulation to different skin layers.

This combined approach works by:

• Delivering RF energy to targeted skin depths
• Generating controlled dermal heating
• Supporting collagen fiber activity through thermal stimulation
• Applying red photon light as a complementary surface-level technology

This configuration allows treatment across multiple areas including the face, neck, abdomen, arms, thighs, and back.

Vacuum + RF Technology

The vacuum and RF handpiece integrates mechanical suction with radio frequency energy.

This function includes:

• Lifting and mobilization of skin tissue through vacuum suction
• Stimulation of circulation and lymphatic flow
• Delivery of RF heat to dermal layers
• Thermal interaction with collagen structures

The combined mechanism enables simultaneous surface and sub-surface interaction.

Key Features

• Touch Screen Interface: User-friendly control system for parameter adjustment
• Multi-Function Platform: Combines cavitation, RF, vacuum, and photon technologies
• Multiple Treatment Heads: Designed for specific face and body areas
• Flexible Applicators: Cables up to 2 meters for ease of use
• Heat Dissipation System: Supports stable and continuous operation
• Non-Surgical Application: No anesthesia required during operation
• Targeted Energy Delivery: Designed to reach different skin depths with controlled energy
• Modern Design: Compact structure with professional aesthetic finish

Technical Specifications

General System

• Power Supply Input:
  • 100–110V / 60Hz
  • 220–240V / 50Hz
• Power Consumption: 130W

40K Cavitation Head

• Output Voltage: 150V
• Frequency: 40kHz
• Power: 25W

Vacuum + RF Head

• Output Voltage: 66V
• Frequency: 450kHz
• Power: 95W

Bipolar RF Head (Eye Area)

• Output Voltage: 24V
• Frequency: 3MHz
• Power: 1W

Tripolar RF Head (Face)

• Output Voltage: 66V
• Frequency: 3MHz
• Power: 35W

Sextupolar RF Head (Body)

• Output Voltage: 66V
• Frequency: 1MHz
• Power: 35W

Treatment Areas

This system is designed for cosmetic use in areas such as:

• Face and forehead
• Eye contour area
• Neck and jawline
• Arms and shoulders
• Abdomen and waist
• Back
• Buttocks
• Thighs and legs

Package Contents

• Main Machine ×1
• 40KHz Cavitation Head ×1
• Vacuum + RF Head ×1
• Bipolar RF Head (Eye Area) ×1
• Tripolar RF Head (Face) ×1
• Sextupolar RF Head (Body) ×1
• Power Cord ×1
• Probe Holder ×1
