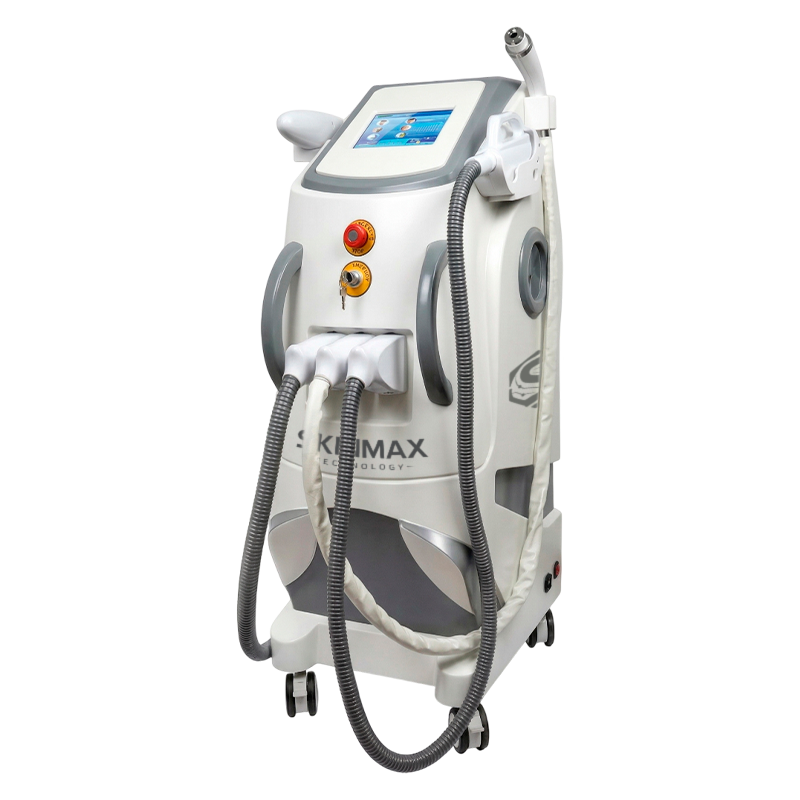

3 in1 Elight IPL RF ND Yag Laser Machine

Multi-Function E-Light IPL + RF + Nd:YAG Laser Beauty Machine

Overview

This multi-technology beauty system integrates E-Light (IPL + Radio Frequency), Unipolar RF, and Q-Switched Nd:YAG Laser into a single platform. It is designed for a wide range of aesthetic applications, combining different energy modalities to operate at multiple skin depths.

The system incorporates an advanced cooling structure and a user-friendly interface, supporting consistent operation and adaptable treatment settings.

Working Principle

E-Light Technology (IPL + RF)

E-Light combines Intense Pulsed Light (IPL) with Radio Frequency (RF):

• IPL (Intense Pulsed Light) delivers broad-spectrum light energy, unlike traditional lasers that operate at a single wavelength.
• Radio Frequency (RF) penetrates deeper layers of the skin independently of melanin.

By combining both technologies:

• Energy can reach multiple skin depths.
• RF energy is not dependent on pigment absorption, allowing treatment across different skin types.
• The system can address lighter hair tones (e.g., grey or red), which are typically less responsive to standard IPL alone.

Nd:YAG Laser Technology

The Q-Switched Nd:YAG laser operates at multiple wavelengths (1064nm and 532nm), enabling targeted interaction with pigments at different depths.

Treatment Applications

1. E-Light (IPL + RF Handle)

• Hair removal procedures
• Pigmentation treatments (freckles, spots)
• Skin rejuvenation procedures
• Acne-related applications
• Vascular-related treatments

2. RF Handle (Unipolar Radio Frequency)

• Skin tightening procedures
• Wrinkle-related treatments
• Facial contouring applications
• Pore refinement procedures

3. Nd:YAG Laser Handle

• Tattoo pigment removal (various colors)
• Pigmented lesion treatments
• Cosmetic pigment removal (eyebrows, eyeliner, lip line)

System Features

• Multi-functional platform integrating three technologies
• 8-inch color LCD touch screen with user-friendly interface
• Dual operation modes: easy mode and professional mode
• Multi-language system support
• ABS housing with structured design
• Continuous operation capability with stable performance
• Integrated safety monitoring system (water level, flow, temperature alarms)
• Advanced cooling system: semiconductor cooling + water + air + gel

Technical Specifications

E-Light (IPL + RF)

• Technology: IPL + Bipolar RF + Water cooling
• Energy Density: 10–50 J/cm² (IPL), 10–50 J/m² (RF)
• Spot Size: 15 × 50 mm²
• Power: 1800W
• Wavelengths: 480–1200 nm (optional filters: 480 / 530 / 640 nm)
• Pulse Width: 1–200 ms
• Pulse Delay: 1–600 ms
• Discharge Interval: 1–4 seconds (adjustable)
• Probe Temperature: -2°C to 0°C

RF Handle

• Frequency: 10 MHz
• Power: 1–20 J/cm³
• Handpiece Sizes: 43 mm / 30 mm / 15 mm
• Delay: 50–2500 ms
• Probe Temperature: -2°C to 0°C

Nd:YAG Laser

• Type: Q-Switched Nd:YAG
• Wavelengths: 1064 nm / 532 nm / BDLS
• Energy: 1–1200 mJ
• Frequency: 1–6 Hz
• Shot Capacity: 500,000 shots

General System Specifications

• Display: 8-inch LCD digital touch screen
• Cooling System: Semiconductor + water + air + gel
• Voltage:
  • 110–130V / 60Hz
  • 220–240V / 50Hz
• Machine Size: 50 × 53 × 118 cm
• Weight: 40 kg
• Safety Features: Water alarm, temperature alarm

What’s Included

• Main machine unit
• E-Light (IPL + RF) handle
• RF handle (multiple sizes)
• Nd:YAG laser handle
• Integrated cooling system

Usage Considerations

This equipment is designed for professional aesthetic environments. It features adjustable parameters, multiple operation modes, and integrated safety controls to support different treatment configurations.
