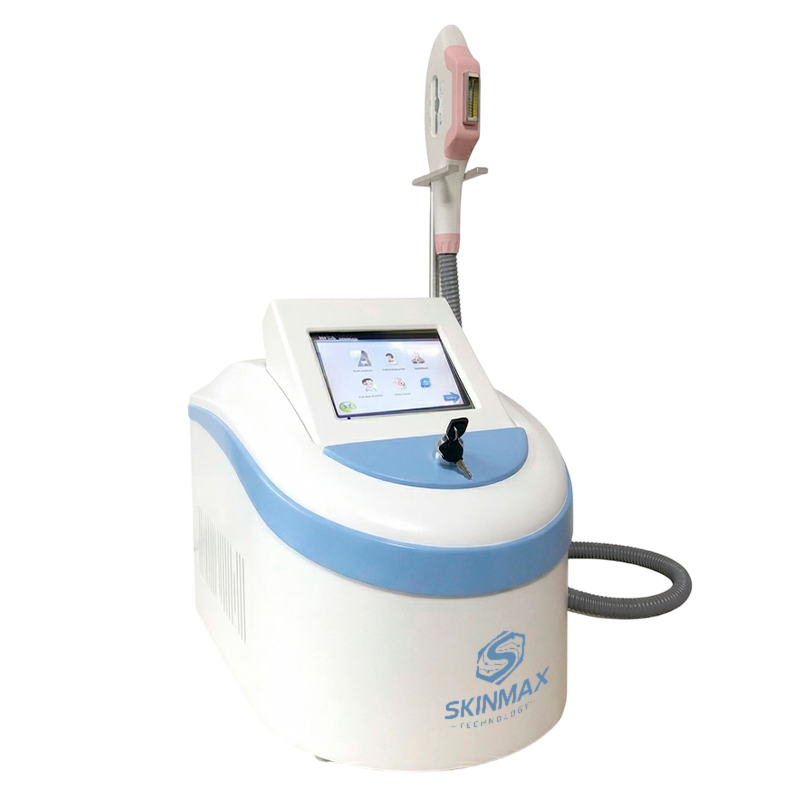

1700w OPT SHR Hair Removal Machine
1700w OPT SHR Hair Removal Machine
Couldn't load pickup availability
Share
OPT (SHR) Hair Removal and IPL Multifunction System
Advanced Fluorescence Technology for Aesthetic Applications
Overview
The OPT (SHR) system integrates Advanced Fluorescence Technology (AFT) with Super Hair Removal (SHR) methodology to deliver controlled pulsed light treatments. This platform is designed for use in aesthetic environments, combining IPL-based technology with optimized energy delivery for consistent and uniform application.
The system incorporates a specialized filter that blocks wavelengths between 950–1200 nm, which are not required for treatment, while managing energy absorption to support a more controlled and uniform emission.
Technology Description
AFT (Advanced Fluorescence Technology)
AFT technology converts and redistributes light energy into a more usable spectrum, enabling:
- More uniform energy distribution
- Controlled light output
- Consistent pulse delivery across the treatment area
SHR (Super Hair Removal)
SHR technology operates using low-energy, high-frequency pulses applied in continuous motion (“In Motion” technique). This approach allows gradual heating of the targeted area while maintaining controlled energy levels throughout the session.
System Functions
-
Hair Removal
Designed for the reduction of unwanted hair on various body areas using pulsed light technology. -
Skin Rejuvenation
Supports procedures focused on improving the appearance of uneven skin tone and texture. -
Vascular Treatment
Intended for applications involving visible superficial vascular irregularities. -
Pigmented Lesions Treatment
Suitable for procedures targeting the appearance of freckles, age spots, and pigmentation variations. -
Acne Care Applications
Can be used in combination with topical products as part of acne-related treatment protocols.
Technical Specifications
| Parameter | Description |
|---|---|
| Display | 8.4” TFT True Color LCD (24-bit) |
| Output Power | 2000W |
| RF Energy | 1–50 J/cm³ |
| IPL Energy | SHR: 1–30 J/cm² / UL: 1–50 J/cm² |
| Pulse Frequency | SHR: 1–10 shots/second / UL: 0.2–1 shot/second |
| Pulse Modes | SHR: Single pulse (1T) / UL: 1–6 pulses |
| Spot Size | 15 × 50 mm |
| Cooling System | Semiconductor + Air + Water + Cooling Gel |
| Skin Cooling Range | ≤ 0–10°C |
| Machine Dimensions | 37 × 48 × 45 cm |
| Package Dimensions | 68 × 50 × 57 cm |
| Net Weight | 25 kg |
| Gross Weight | 35 kg |
| Voltage | 110V / 220V |
| Packaging | Wooden box |
Key Features
- Integration of OPT (Optimal Pulse Technology) and SHR system
- “In Motion” application mode for continuous treatment delivery
- Multi-level adjustable energy parameters
- Combined cooling system for temperature regulation during operation
- Large spot size for efficient coverage of treatment areas
- Independent pulse modes (single and multi-pulse configurations)
Typical Applications
This equipment is commonly used in:
- Beauty clinics
- Aesthetic centers
- Dermatological practices (non-medical aesthetic procedures)
Package Contents
- Main machine unit
- Integrated display and control system
- Applicator/handpiece(s)
- Standard accessories
- Protective wooden transport case
Usage Considerations
The device is operated through an integrated control system with adjustable parameters depending on the selected function. Proper training is recommended for handling IPL/SHR equipment and selecting appropriate settings for each application.
This OPT (SHR) system combines multiple light-based technologies in a single platform, offering a configurable solution for a variety of aesthetic treatment protocols.
