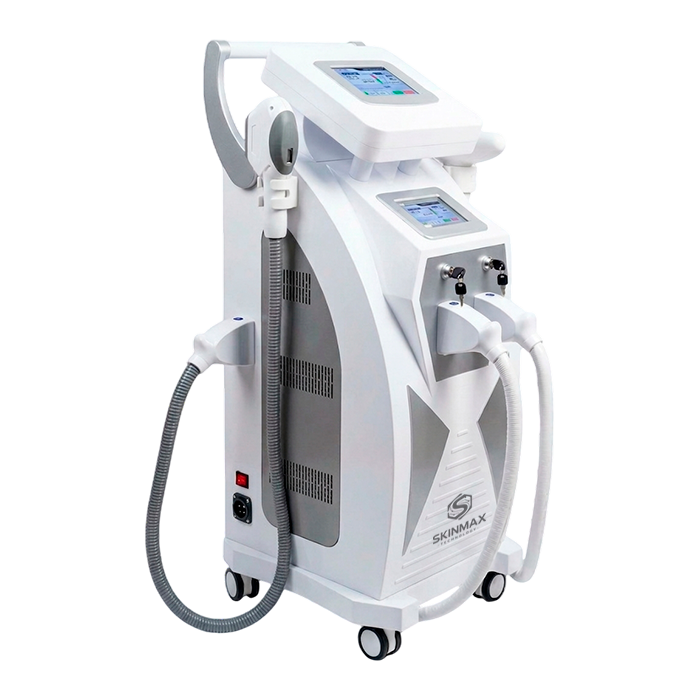

1700w IPL Shr Opt Machine II

OPT IPL + ND:YAG Laser + RF Machine – Multifunction Aesthetic Platform

Product Overview

This multifunctional system integrates OPT (Optimal Pulsed Technology), IPL, ND:YAG laser, and Radiofrequency (RF) into a single advanced platform.
It is designed for professional aesthetic procedures involving skin treatment, hair removal, and pigment-related applications through combined light and thermal technologies.

Technology Description

• OPT (Optimal Pulsed Technology):
  An advanced evolution of IPL that delivers controlled pulsed light with optimized energy distribution, enabling consistent interaction with skin chromophores.
• IPL (Intense Pulsed Light):
  Emits broad-spectrum light that interacts with pigment and vascular structures through selective absorption.
• ND:YAG Laser:
  Provides targeted laser energy for deeper tissue interaction, commonly used in pigment and tattoo-related procedures.
• Radiofrequency (RF):
  Generates controlled thermal energy within the dermis, supporting structural interaction in connective tissue layers.

Working Principle

The system operates through combined photothermal, photochemical, and thermal mechanisms:

• Light energy penetrates the skin and is selectively absorbed by pigment and vascular structures
• RF energy delivers controlled heat into deeper layers
• The interaction is associated with collagen fiber structure and tissue dynamics
• Targeted chromophores absorb energy, enabling localized interaction without affecting surrounding tissue

This multi-technology approach allows simultaneous treatment protocols across different skin layers.

Functional Applications

This device is used in procedures related to:

• Pigmentation conditions
• Vascular-related skin concerns
• Hair removal applications
• Tattoo and pigment interaction
• Skin texture and conditioning protocols

Key Features

• OPT + IPL + ND:YAG + RF integrated system
• Dual operation screens for simultaneous treatments
• 8-inch color touch LCD interface
• Dual operation modes: beginner and professional
• Multi-language support
• ABS structural design for durability
• Intelligent monitoring system (water level, flow, and safety detection)
• Advanced cooling system (-3°C to 2°C) for operational stability
• Continuous operation capability

Technical Specifications

IPL Parameters

• Energy Density: 10–50 J/cm²
• Spot Size: 10 × 40 mm²
• Discharge Interval: 1–4 seconds (adjustable)
• Probe Temperature: -3°C to 2°C
• Wavelength: 640 / 530 / 480 nm (standard), 480–1200 nm (optional)

OPT Parameters

• Energy: 1–50 J/cm³
• Pulse Duration: 8 ms
• Frequency: 1–5 pulses/second

Radiofrequency (RF) Parameters

• Handle Size: 43 mm / 30 mm / 15 mm
• Frequency: 3 pulses/second
• Energy: 1–20 J/cm³
• Delay: 50–2500 ms
• Probe Temperature: -3°C to 0°C

Application Scope

Designed for use in:

• Aesthetic clinics
• Dermatology centers
• Professional skincare environments

Product Classification

Item Type: OPT IPL + ND:YAG + RF Machine
Technology: Multi-Technology Light & RF System
Application: Skin Treatment, Hair Removal & Pigmentation Procedures
Operation Mode: Multifunction Non-Invasive Platform
